AFC
AFC

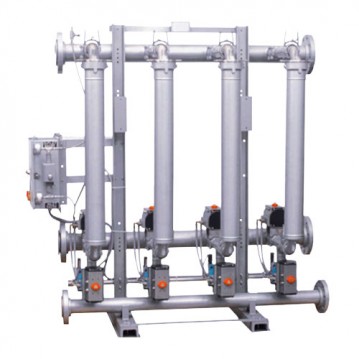

The simple design and quick-element access of the AFC-Series Tubular Backwash Filter can significantly reduce the time and effort required to maintain, change elements and reconnect the unit’s valves.
Ideal Balance of Performance and Economy
The AFC-Series tubular backwash filter is optimal for applications that demand high-pressure operation, up to 1,000 psi and scalable flexibility. Systems are available in single, duo, and multiplex configurations.
Features
- Solids removal from 1 to 1,700 microns
- Single system flow rates up to 3,000 gpm (681 m3/hr)
- Wide range of applications
- Smooth pipe and nozzle connection transitions
- Numerous automated backwash options
- Available ACCUFLUXTM media
- Proprietary 3-way, full-ported valves on AFC-1100 Multiplex Filters
- Isolated top-to-bottom backwash flow on AFC-1100 and AFC-3300 Multiplex Filters
- Quick coupler valve connectors
Applications
- Chemicals & Ethanol
- Food and Beverage
- Manufacturing
- Oil and Gas
- Pulp and Paper
- PetroChem
- Pharmaceuticals
- Water
Downloads
Brochures
Technical Data Sheets
Product Specs
- Eaton Tubular Backwashing AFC-Series Filters
- Eaton Tubular Backwashing Components & Options
- Eaton Tubular Backwashing Filter Media
- Eaton Tubular Backwashing Filters Introduction
Drawings
- Tubular Backwashing Filter Drawings AFC 1100 EB Multiplex Dimension Table AFC 1100 EB DT001
- Tubular Backwashing Filter Drawings AFC 1100 EB Multiplex Front View AFC 1100 EB GA001
- Tubular Backwashing Filter Drawings AFC 1100 EB Multiplex P&I Diagram AFC 1100 EB PI001
- Tubular Backwashing Filter Drawings AFC 1100 DUO Strate Thru View DUO 1100 DST GA003
- Tubular Backwashing Filter Drawings AFC 1100 DUO Standard View DUO 1100 DSTD GA001
