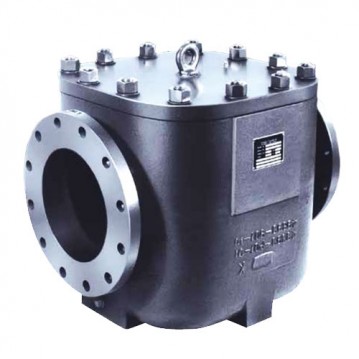

The Model 510 simplex strainer is unlike other large size simplex strainers because of its multi-basket design. Four strainer baskets strain the process media and give the strainer an extremely high dirt removal capability. The strainer protects system components such as flow meters, pumps, and spray nozzles.

The Model 510 Simplex Strainer is designed for larger piping systems having flow rates up to 40,000 gpm.  Unlike other large size simplex strainers the Model 510 has a multi-basket design.  Four strainer baskets per unit strain the process media and give the strainer an extremely high dirt removal capability.  This is an important consideration in larger size strainers that, because of their size and design, take longer basket leaning or change out.  The longer the strainer stays in service between cleanings, the less expensive its operating costs.

To reduce the pressure loss to an absolute minimum the Model 510 has a straight through flow configuration.  This is made possible by a unique basket design that incorporates a slanted top to permit straight through flow.
