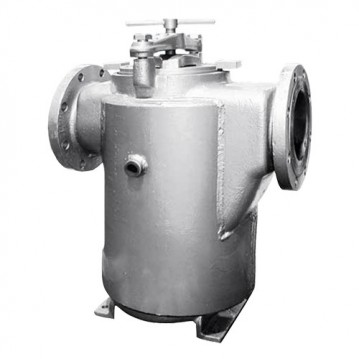

Model 72SJ Seam Jacketed

Carbon Steel or Stainless Steel - Flanged, 1" to 8"

Model 72SJ Seam Jacketed

Steam jacketed strainers are used for applications where materials must be kept hot in order to remain fluid. Applications examples are chocolate, asphalt, resins and polymers. The strainer body temperature is maintained by circulating steam or a heat transfer fluid through the strainer jacket. The strainer body is provided with either a carbon steel or a stainless steel jacket welded to the cast body. The jacket will handle steam pressures up to 100 psi.

The basic strainer used in the Model 72SJ is our popular Model 72 Basket Strainer which has, over the years, proven itself a standard of industry. All of the features of the Model 72 have been retained, including large capacity baskets and yoke type, hand removable covers for quick basket cleaning or change out.

Features

Applications

  • 1/2″ NPT Steam Connections
  • Up to 100 PSI Steam Pressure
  • Quick-Open Cover Without Tools
  • Large Capacity Baskets
  • Threaded Drain
  • Machined Basket Seat
  • Perforated or Mesh Stainless Steel Baskets Standard
  • Wastewater & Irrigation
  • Machining Fluids & Spray Nozzle Systems
  • Heat Exchanger Protection
  • Cooling Towers & Boiler Feed Water
  • Deep Well Injection
  • Descaling Systems & Lube Oil Systems
  • Paper Coating & Refining

Options

  • Basket Perforations From 1/32″ to 1/2″
  • Basket Mesh From 20 to 400
  • Monel Baskets
  • Viton®, TFE or EPDM Seals
  • Vent Valves
  • Drain Valves
  • 1/4″ NPT Taps
  • Pressure Differential Gauge and Switch Connection
